WRAS APPROVED 55 Pipe Sealing Thread Cord threaded pipe and fitting sealant Immediate Full Pressure Sealing 160m
2024-11-12 17:13:57
admin
0
Product Description
What is Thread Seal Cord?
Thread Seal Cord Used for Sealing Plumbing Connections. Thread Seal Cord is also known as Pipe sealing cord, PTFE sealing string, Plumbers Tape. It is made of more than 207 micro nylon fiber and is used for sealing pipe threads, lubricating threaded connections and preventing seizing during disassembly.

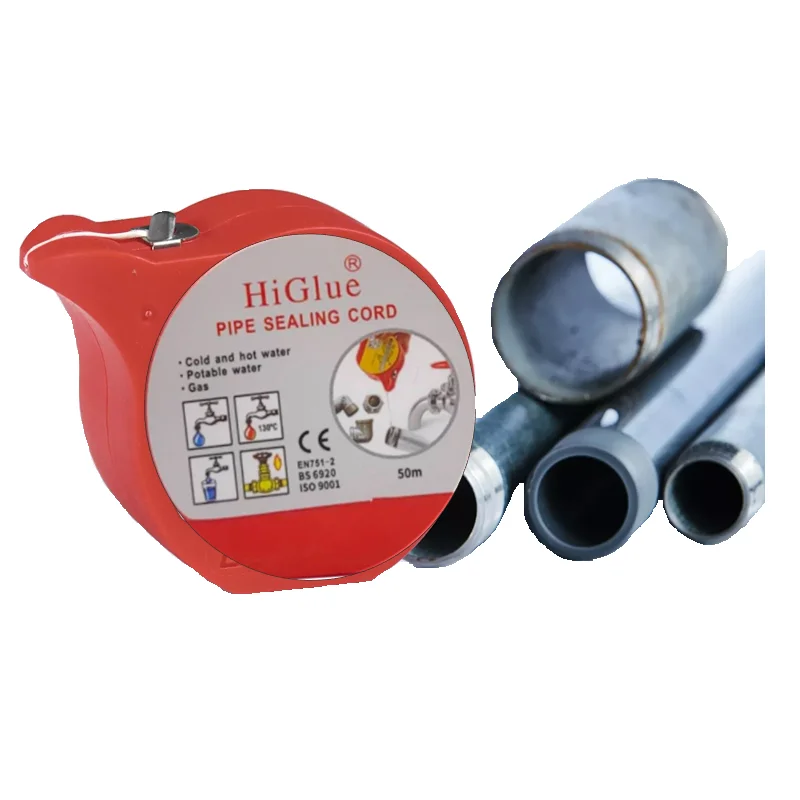

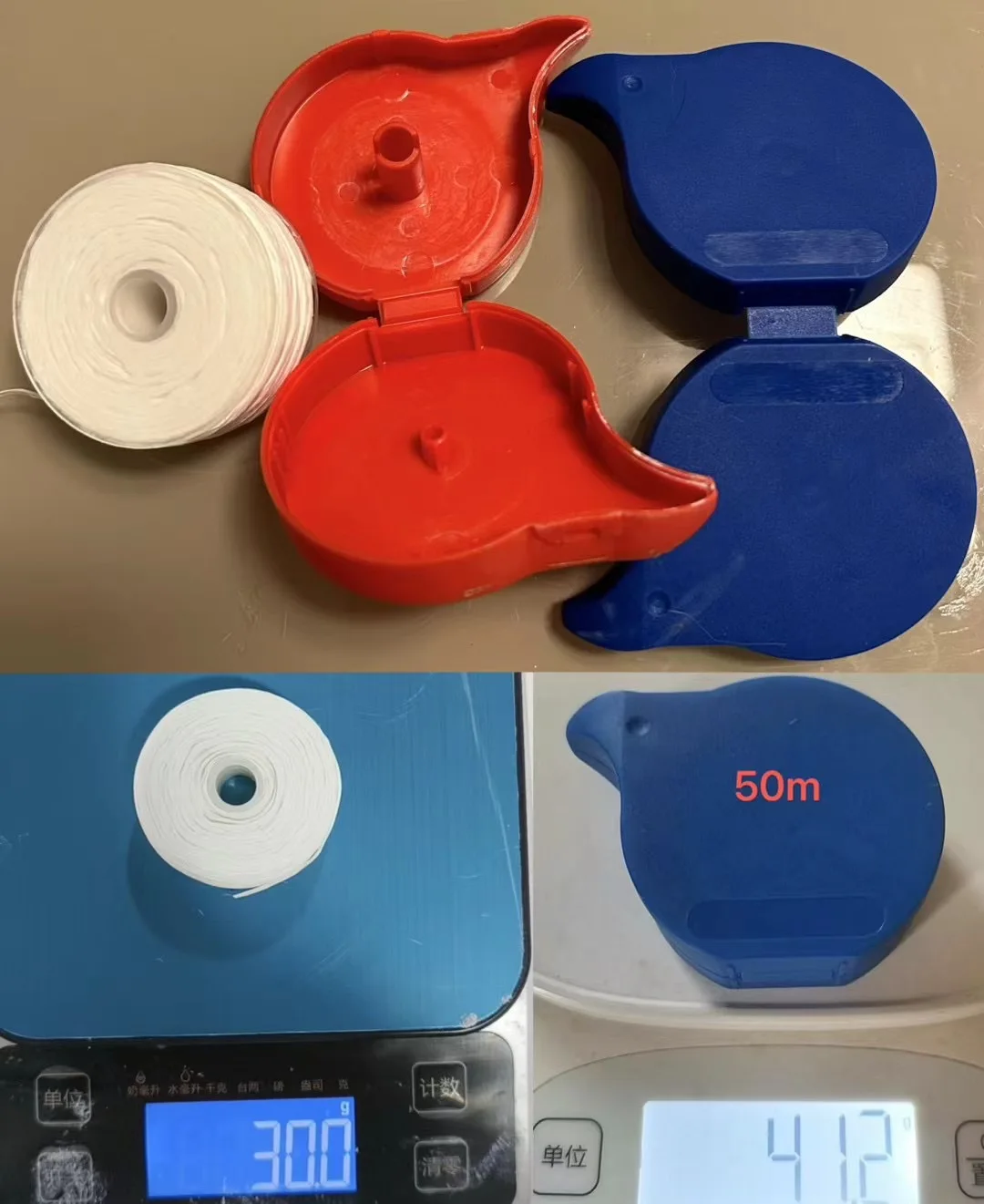

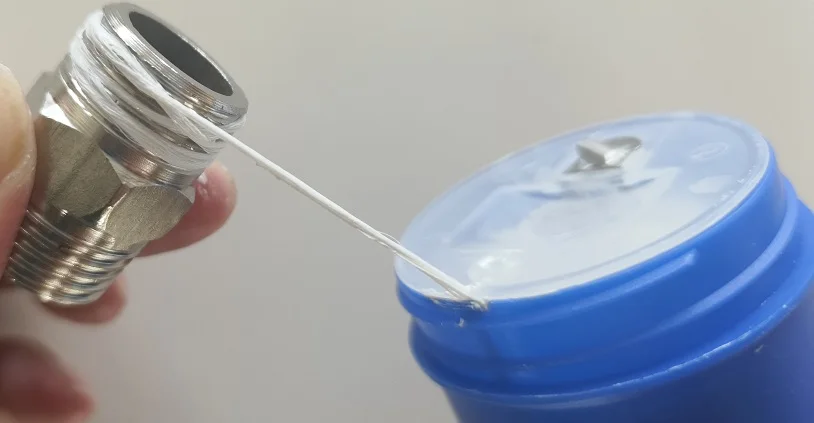

Thread seal cord is usually supplied on a plastic spool (like the one shown) and is typically very thin and supplied in rolls of about 50 metres/ 80 meters/ 160 meters in length.

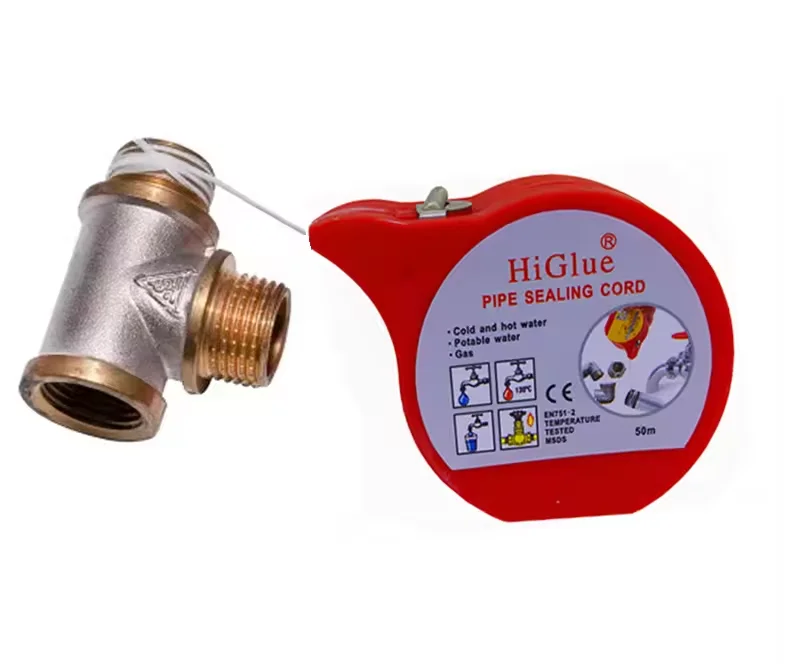

Thread Sealing Cord is easy to use. Unlike thread seal tape, there’s no need to try and lay it flat without creases. Just wrap it around and around the thread randomly overlaying the strands. It really is that simple. Start wrapping at the beginning of the thread and wrap forwards (For optimum performance, the grooves of the threads should be filled without completely masking the pitches of the thread). Cut the required length off with the integrated cutting and smooth the loose end onto the pitches of the pipe thread. As far as guidelines go, these are pretty simple too.
6 to 8 wraps for threads up to about 12mm (1/2”) Diameter.
Technical Information
Our Advantages

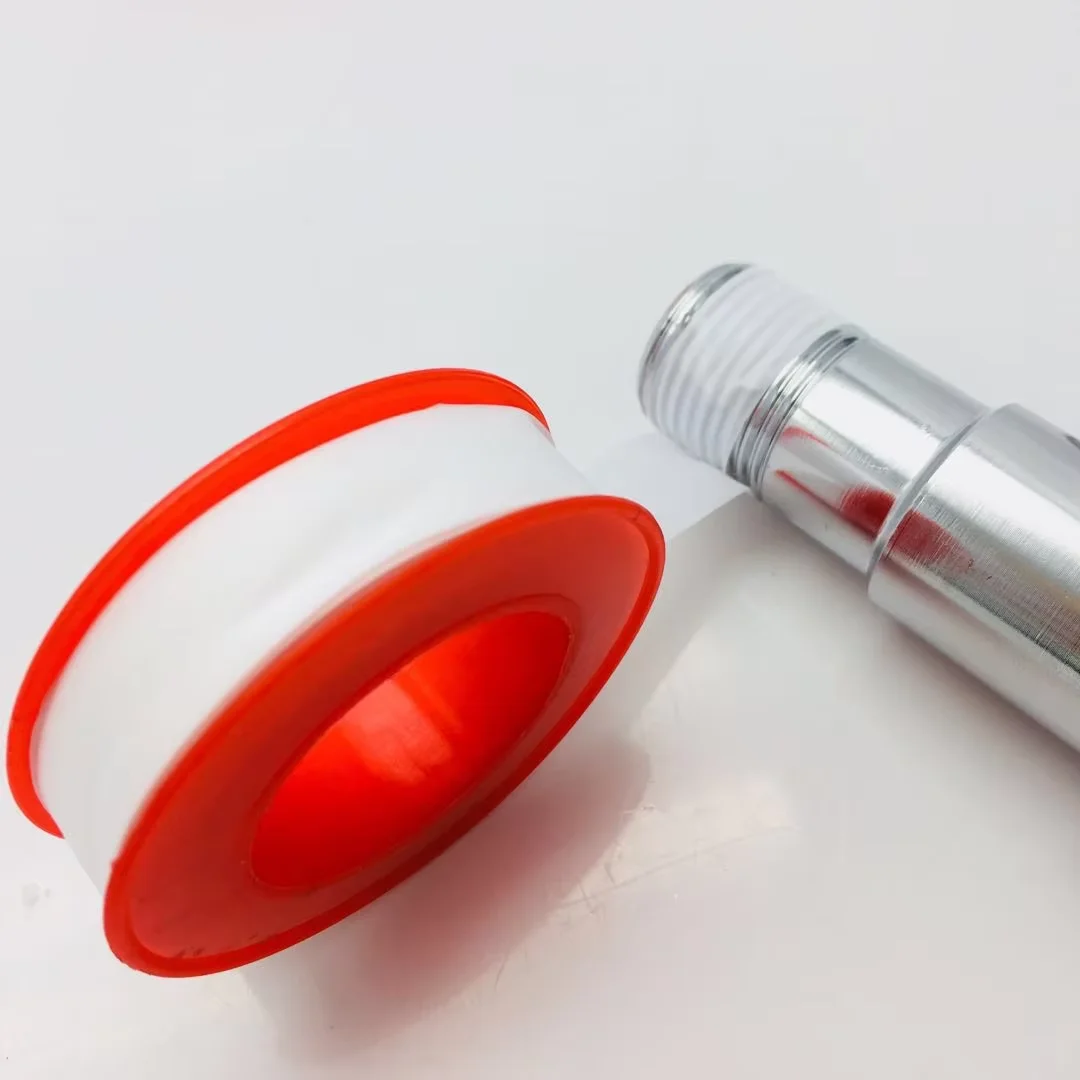

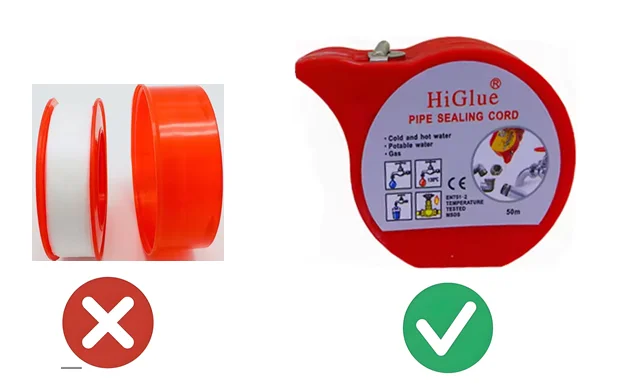

Pipe Sealing Cord VS PTFE Tape
To seal 1/2" pipe fittings:
A. Fast
HiGlue 55 Pipe sealing cord 6~8 wraps.
PTFE tape need 15~20 wraps.
B. Easy
HiGlue 55 pipe sealing cord is easy to apply, green hand workers is ok.
PTFE tape need skilled worker to operate, as the tape possible to demage due to over tightening.
C. Reliable
1. HiGlue® 55 pipe sealing cord can be adjusted up to 45° after tightening without leakage.
2. The fibrous yarn is consisted of more
than 207 micro nylon fiber extremely durable and tear-resistant, which means that it's strong and flexible.
3, The thread is not susceptible to sudden changes in temperature and to high pressure, which significantly extends the possible
life of the thread.
than 207 micro nylon fiber extremely durable and tear-resistant, which means that it's strong and flexible.
3, The thread is not susceptible to sudden changes in temperature and to high pressure, which significantly extends the possible
life of the thread.
1. No adjustments can be made as the PTFE tape shreds on opening the pipe joints.
2. Gaps remain along the pipe joint threads, which leads to leaks.
3. Tape shreds clog downstream filters.
4. Susceptible to vibration loosening and leakage.
3. Tape shreds clog downstream filters.
4. Susceptible to vibration loosening and leakage.
D. Economical
1. 0.4m Pipe Sealing Cord to seal it (the cost is about 0.01usd), operation time is 24 seconds.

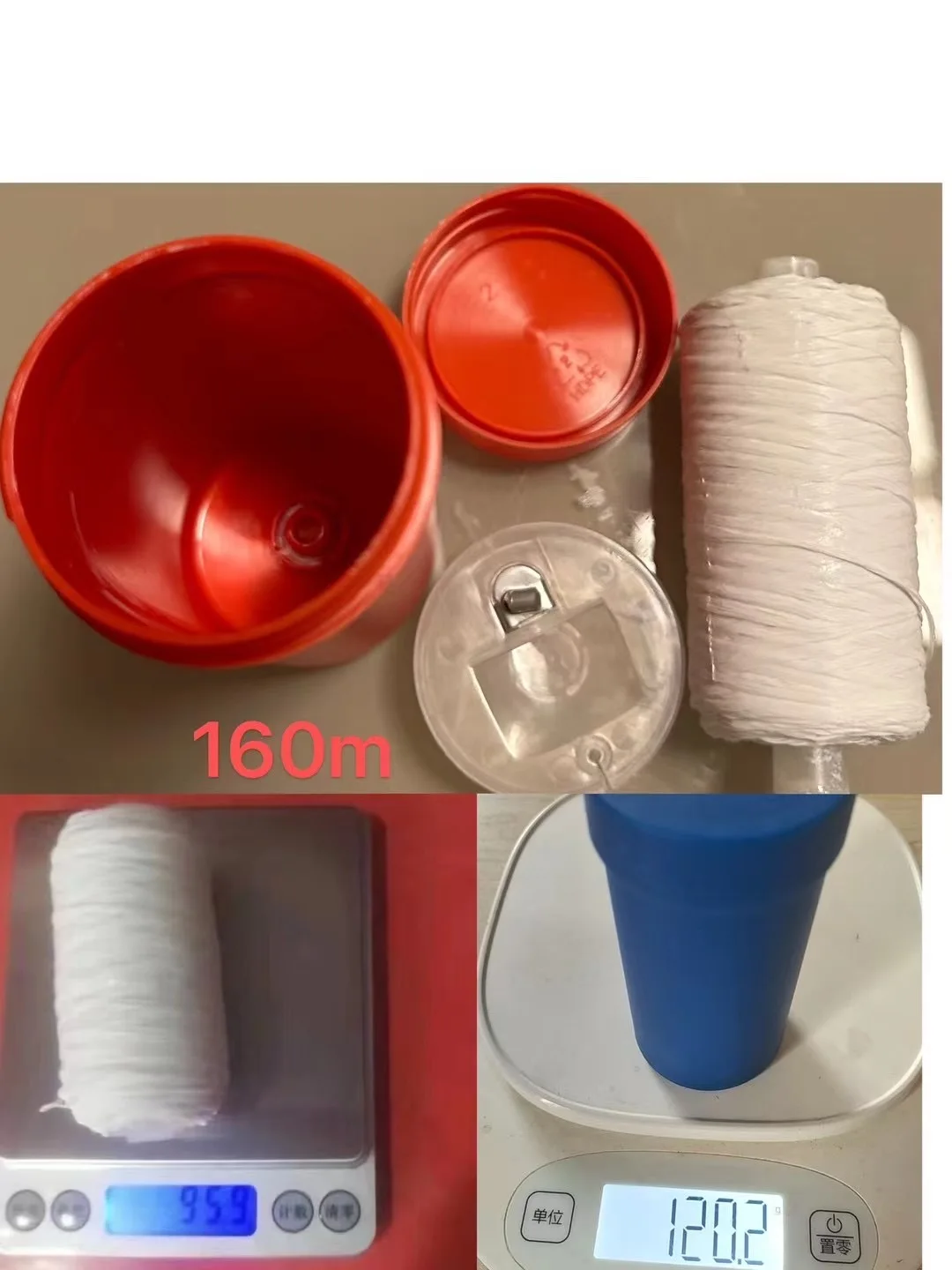

2. 10pcs*150m=1500m, CBM=0.002m³. 7.56 times less sea shipping and warehouse cost.
1. 1.2m PTFE tape to seal it ( the cost is about 0.02usd), operation time about 50 seconds.
2. 100pcs*15m=1500m, CBM=0.01512m³.
2. 100pcs*15m=1500m, CBM=0.01512m³.
How To Use

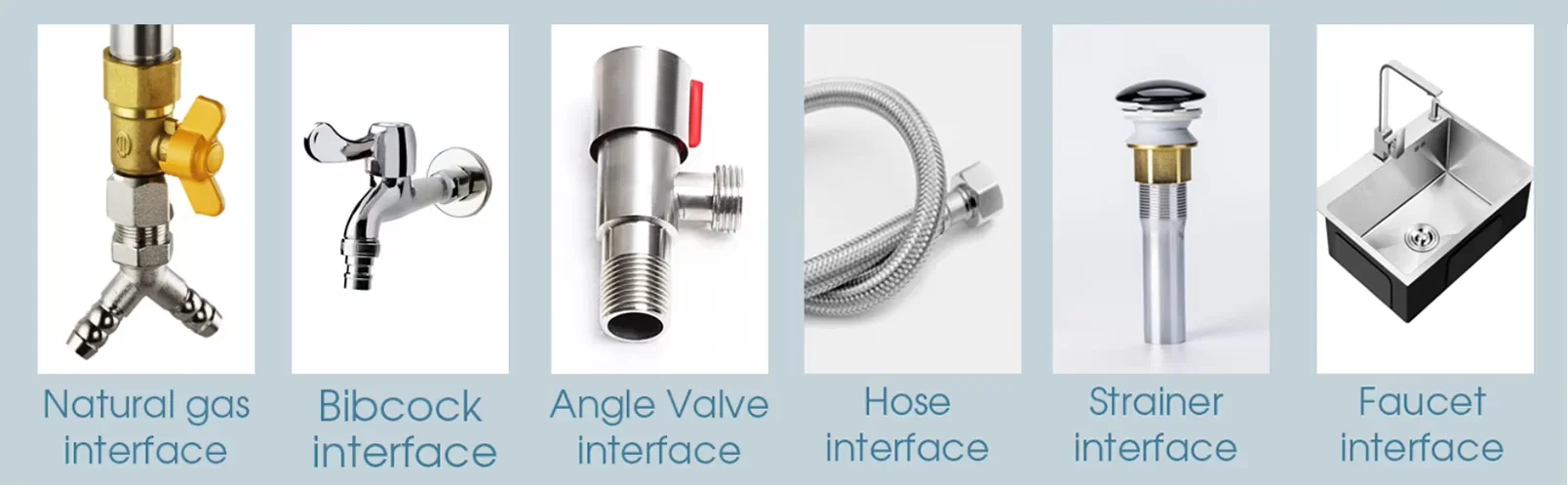

Application
1. Oxygen, petroleum gas; natural gas pipeline and valve installtion;
2. public and household plumbing (cold weather, hot weather
and heating.) 3. Industrial production ( pump, valve and pipe joint etc...).
and heating.) 3. Industrial production ( pump, valve and pipe joint etc...).
Certifications
ISO 9001：2015
CE EN751-2
REACH
Temperature

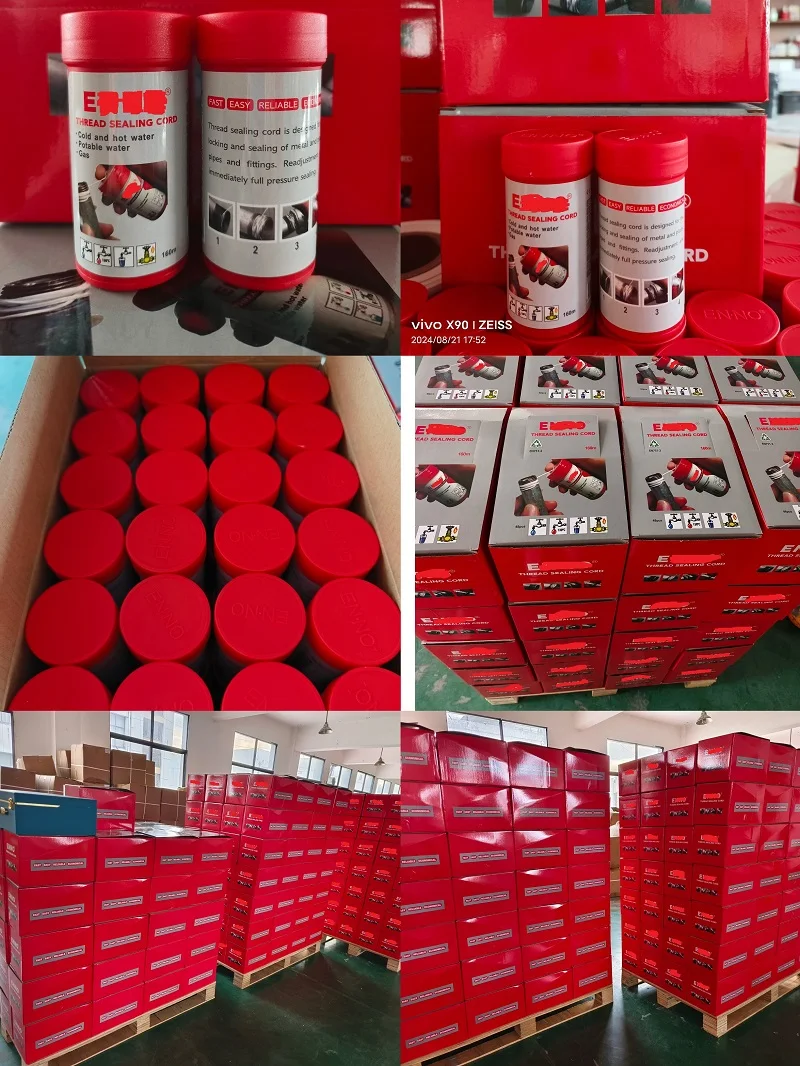

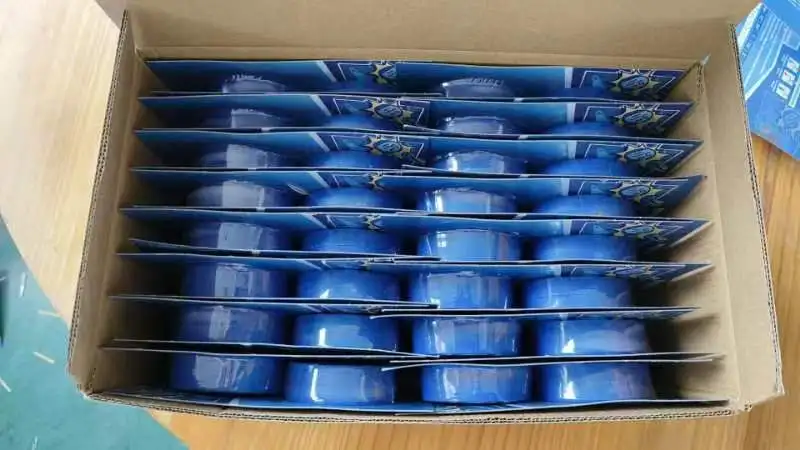

Package
