Higlue 326 Structural adhesive
Yellow to amber, no-mix, medium viscosity (thixotropic) structural and magnet bonder which is activated with 7649.

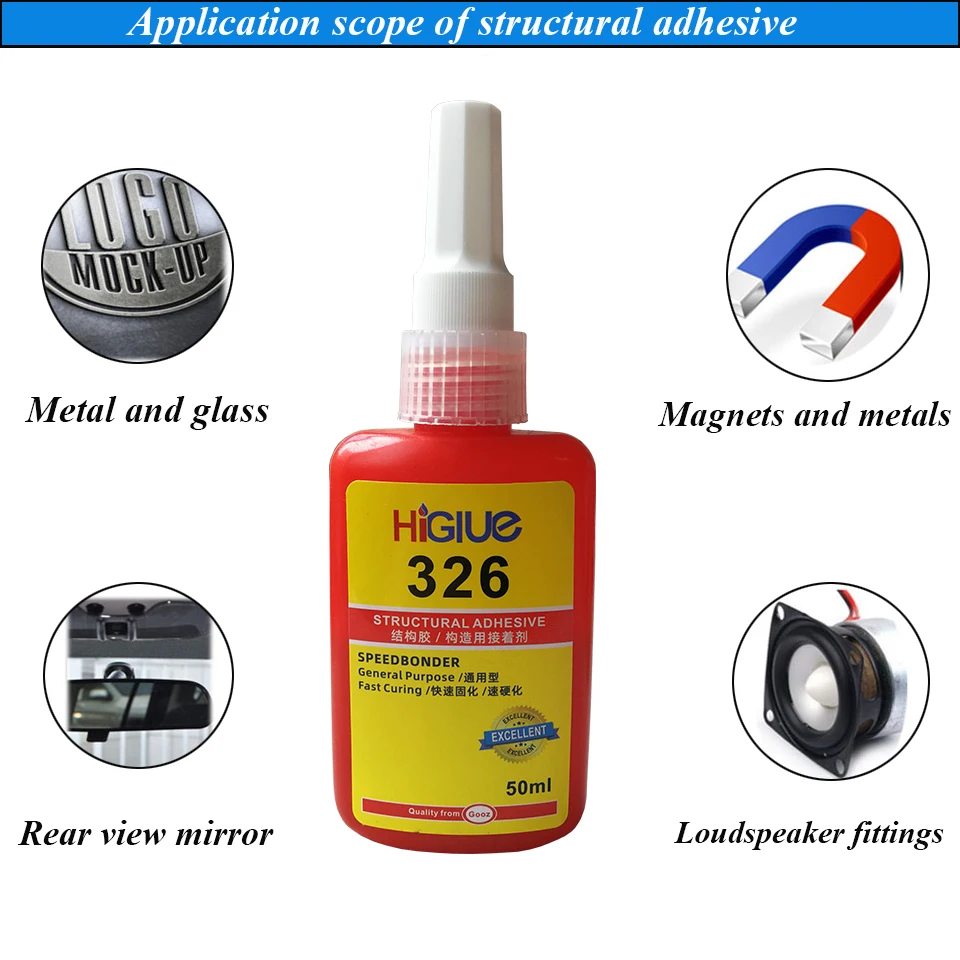

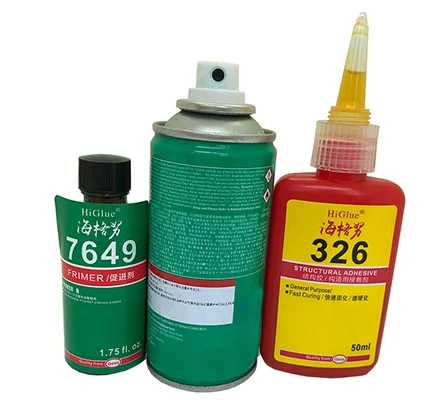

Higlue 326 is a yellow to amber, no-mix, medium viscosity (thixotropic) structural and magnet bonder which is activated with 7649. It has good adhesion to different types of ferrites, a fixture time of 3 min and a shear strength of 15 N/mm². It can be used in temperatures up to +120°C. Requires 7649 to activate.
Higlue 326 is a yellow to amber, no-mix, medium viscosity (thixotropic) structural and magnet bonder which is activated with 7649. It has good adhesion to different types of ferrites, a fixture time of 3 min and a shear strength of 15 N/mm². It can be used in temperatures up to +120°C. Requires 7649 to activate.
Product Feature
▶ High strength
▶ Suited to magnet bonding
▶ Medium viscosity (thixotropic)
▶ Good adhesion to different types of ferrites
▶Temperature resistant up to +120°C
▶ Fixture time is 3 min
▶ Shear strength is 15 N/mm²
▶ Good solvent resistance.
▶ Requirements for the fast fixed occasions.
▶ Suited to magnet bonding
▶ Medium viscosity (thixotropic)
▶ Good adhesion to different types of ferrites
▶Temperature resistant up to +120°C
▶ Fixture time is 3 min
▶ Shear strength is 15 N/mm²
▶ Good solvent resistance.
▶ Requirements for the fast fixed occasions.
◆ Seals joined parts in automotive systems - prevents leakage of antifreeze, air, oil and transmission fluid
◆ Meets manufacturers' warranty requirements
◆ Resists oil better than other silicone gasket makers
◆Won't interfere with sensors
◆ Won't corrode
◆Resists vibration
◆Low odor
Specs:
Tack-free cure (time required to dry past tacky state):20 minutes
Full cure (time required to reach full set): 24 hours
Temperature range (endurance limits of the gasket maker): -75 F to 625 F
Ideal gap-filling capacity (gap sizes in which gasket maker performs best): 0.001" to 0.125"
Maximum gap-filling capacity (maximum gap size between joined parts): 0.2
OEM is surported
Method of application:
1. Surfaces where silicon shall be applied must be cleaned, dried and free of grease.
2. Inject the sealant by a hand-operated or pneumatic caulking gun and fill the sealant in the joints. For better appearance,
cover outside of the joint areas with masking tapes before application. Remove the masking tapes immediately after finishing.
NOTES:
☞Avoid long-term contact with skin.
☞Avoid contacting with food, medicine or cosmetics, etc.
☞Place carefully and ensure that the children keep away from the sealant.
☞In case of contacting with eyes, wash with plenty of water immediately
◆ Meets manufacturers' warranty requirements
◆ Resists oil better than other silicone gasket makers
◆Won't interfere with sensors
◆ Won't corrode
◆Resists vibration
◆Low odor
Specs:
Tack-free cure (time required to dry past tacky state):20 minutes
Full cure (time required to reach full set): 24 hours
Temperature range (endurance limits of the gasket maker): -75 F to 625 F
Ideal gap-filling capacity (gap sizes in which gasket maker performs best): 0.001" to 0.125"
Maximum gap-filling capacity (maximum gap size between joined parts): 0.2
OEM is surported
Method of application:
1. Surfaces where silicon shall be applied must be cleaned, dried and free of grease.
2. Inject the sealant by a hand-operated or pneumatic caulking gun and fill the sealant in the joints. For better appearance,
cover outside of the joint areas with masking tapes before application. Remove the masking tapes immediately after finishing.
NOTES:
☞Avoid long-term contact with skin.
☞Avoid contacting with food, medicine or cosmetics, etc.
☞Place carefully and ensure that the children keep away from the sealant.
☞In case of contacting with eyes, wash with plenty of water immediately
